Photos

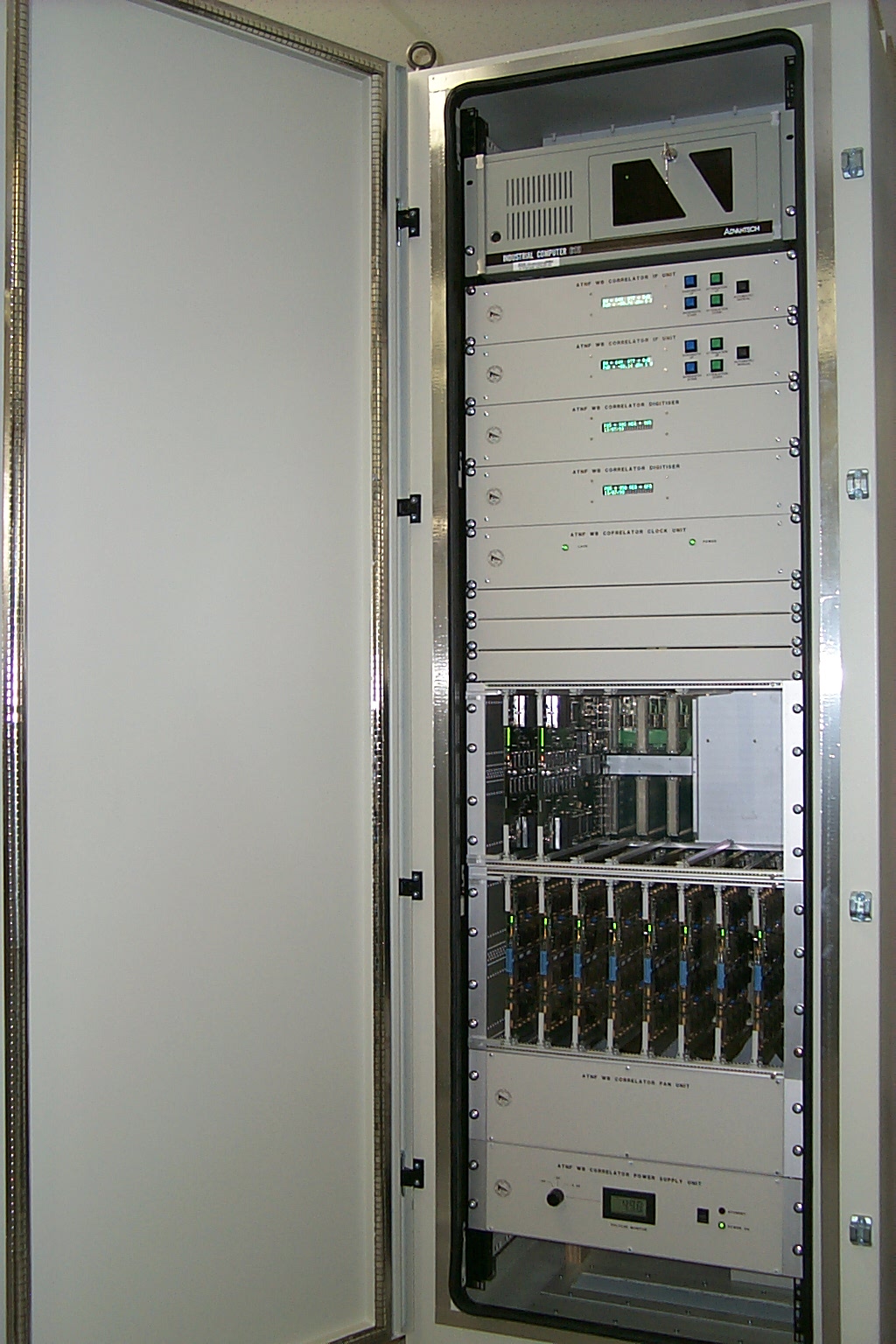

• Front view (low res) (full res)

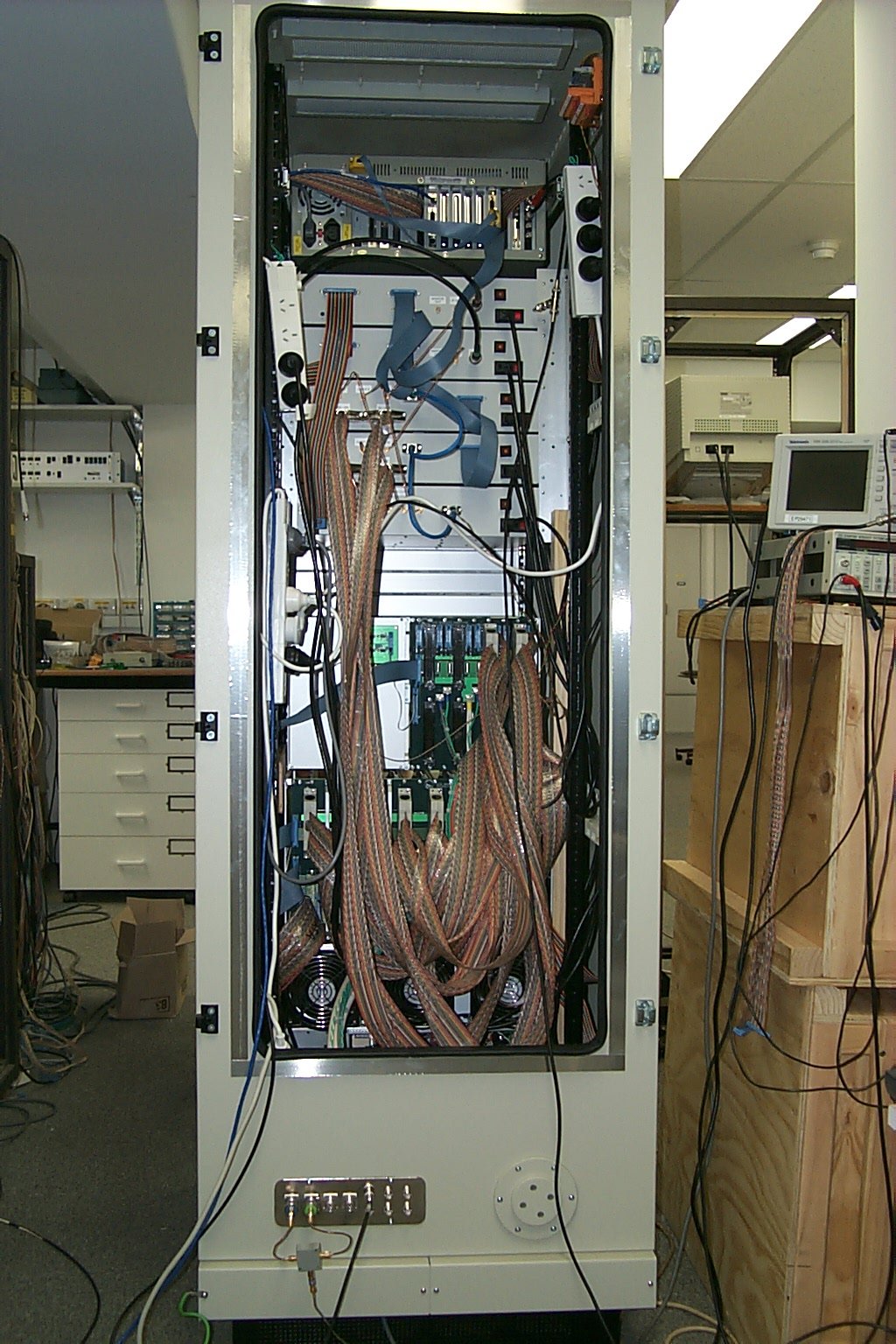

• Rear view (low res) (full res)

.

Broadband (~1GHz) Digital Correlator First Spectrum

Spectrum taken with a 250-500MHz 5% bandpass filter.
Total bandwidth 1.024 GHz Sample rate 2.048GHz.
Using the lab’s multibeam correlator .
3rd August 1999

Spectrum taken with 920Mhz bandpass filter.
Total bandwidth 1.024 GHz Sample rate 2.048GHz.
Using the SEST correlator .
31st August 1999

This page was originally written by David Joss.
